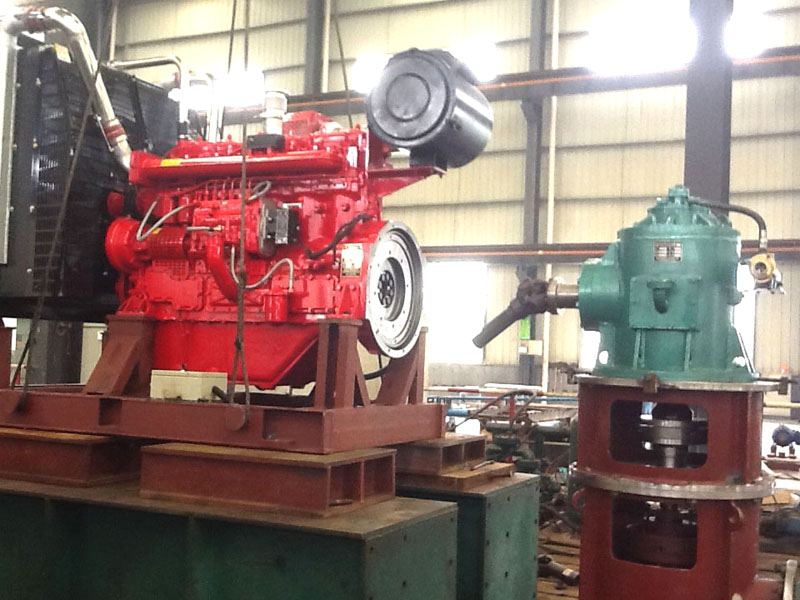

420KW Cummins Diesel Engine Vertical Turbine Fire Fighting Pump Sets
The diesel engine emergency pump units equipped with horizontal split pump, cantilever pump, inline pump, multi-stage pump, vertical turbine submersible pump, plunger and piston pump, etc. are suitable for a variety of fields under different conditions.
The pump can end suction pumps and diesel engine can be 80KW to 1500KW Cummins diesel engines or Explosion proof diesel engines and other brand diesel engines.
Cummins diesel engine /Explosion proof diesel engine: 50kw-1500KW, 1500rpm, 1800rpm, 3000rpm.
Other international brand diesel engine: Volvo, Perkins, Scania, MTU, CAT, etc. 4KW-2000KW, 1500rpm, 1800rpm, 3000rpm.
Chinese brand diesel engine: Chinese diesel engine, such as weichai diesel engine, yuchai diesel engine, jichai diesel engine, tongchai diesel engine,shangchai diesel engine, wuchai diesel engine. 50KW-4550KW 1500rpm, 1800rpm, 3000rpm.
Description
Fluid: Sea water
Pump: Vertical turbine fire fighting Pump
Pump Standard: NFPA20
Pump Capacity: 1450m3/hr Head: 60m
Speed: 1450rpm
NPSH(r): 6.5m
Efficiency: 82%
Diesel engine: Cummins diesel engine drive, 420KW
Pump material: Duplex stainless steel
Coupling: Cardan joint coupling
Control system: Semi-automatic
Starting way: Battery starting
Cooling way: Water cooling
Parameters
The pump can vertical turbine/mixed flow pump and diesel engine can be 80KW to 1500KW Cummins diesel engines or Explosionproof diesel engines and other brand diesel engines.
Vertical Turbine Pump, VTP type with capacity: 40~72000m3/h Head: 5~260m
Vertical Turbine Mixed Flow Pump with capacity: 0.2 - 25m3/s Head: 3 - 60 m
Vertical Axial Mixed Flow Pump with capacity: 250~55000(m³/h) Head:1.5~8 (m)
Application
Agricultural irrigation, urban water supply and drainage, petroleum, chemical, metallurgical, power, fire protection systems, construction site drainage and pumping, mining, drainage and transportation of slurry, ship and port drainage, seawater cooling, and oil pollution treatment, etc. In cases where urban circuits are inconvenient, we will also reserve urban power interfaces fordiesel pump units.
The starting type of diesel engine pump set: Air starting or battery starting
The cooling type: Fan air cooling or water cooling of diesel engine pump set starting
Coupling: Flexible coupling or pin coupling or cardan joint coupling
Diesel engine end suction cantilever pump set can be equiped with energy saving pump, fire fighting pump and explosion proof diesel engine. The diesel engine pump sets can be open type or silent noise type. It can be skid-mounted or truck loading or wheel moving type.
Competitive Advantage
Foucusing in application, we are the first manufacturer to make the biggest power diesel engine pump sets in China with more than 30 years experiences. We can make different solution for different situation or working conditions.
