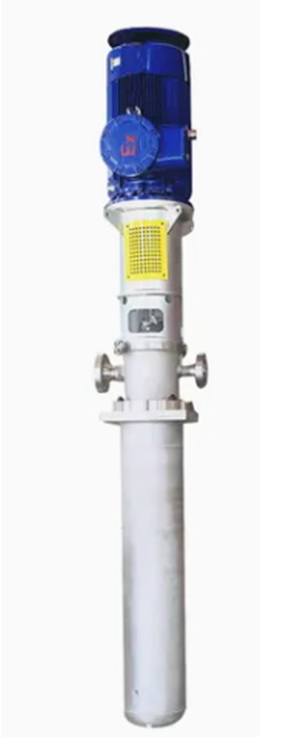

SVT Vertical Barrel Pump (API610 VS6)
The VS6 API pump is designed to comply with the new API 610 and API 682 standards. This pump is specifically designed for dry or wet pit applications and can operate stably in different working environments This type of pump has high standard design, wide adaptability, efficient performance, good maintainability and safety, and has been widely used in industries such as petroleum and chemical.
Description
● Model: API1610 VS6
● Standard: API610
Material
● S-4,S-5,S-6,S-8,S-9,C-6,A-8,D-1,D-2,317L
● Casing: cast iron / spheroidal graphite cast iron / stainless steel / duplex stainless steel
● Shaft: stainless steel / alloy steel
● Impeller: cast iron / bronze / stainless steel / duplex stainless steel
Parameters
| Capacities: | Q: ～800 m3/h |
| Heads: | H～800 m |
| Temperatures: | T-65 ℃ ～+180 ℃ |
| Pressure: | P~10MPa |
Application
Clean or slightly polluted low or high temperature chemically neutral or corrosive liquids; Refinery, petrochemical industry, chemical industry, coal chemical industry, power station, cryogenic engineering, pipeline pressurized offshore platform, liquefied gas engineering, etc.
Competitive Advantage

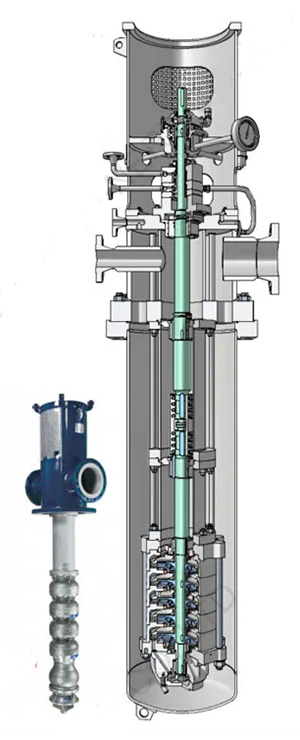

Vertically installed barrel pump, multi-stage, radially split, cylindrical shell, the first stage mostly adopts impeller with outstanding anti-cavitation performance. When the pressure difference is large, the balance drum structure is used to balance the axial force, and the residual axial force is borne by the paired angular contact ball bearings. The casing is only subjected to inlet pressure, and the length of the casing and the installation depth of the pump are determined by the requirements of NPSH cavitation performance.
